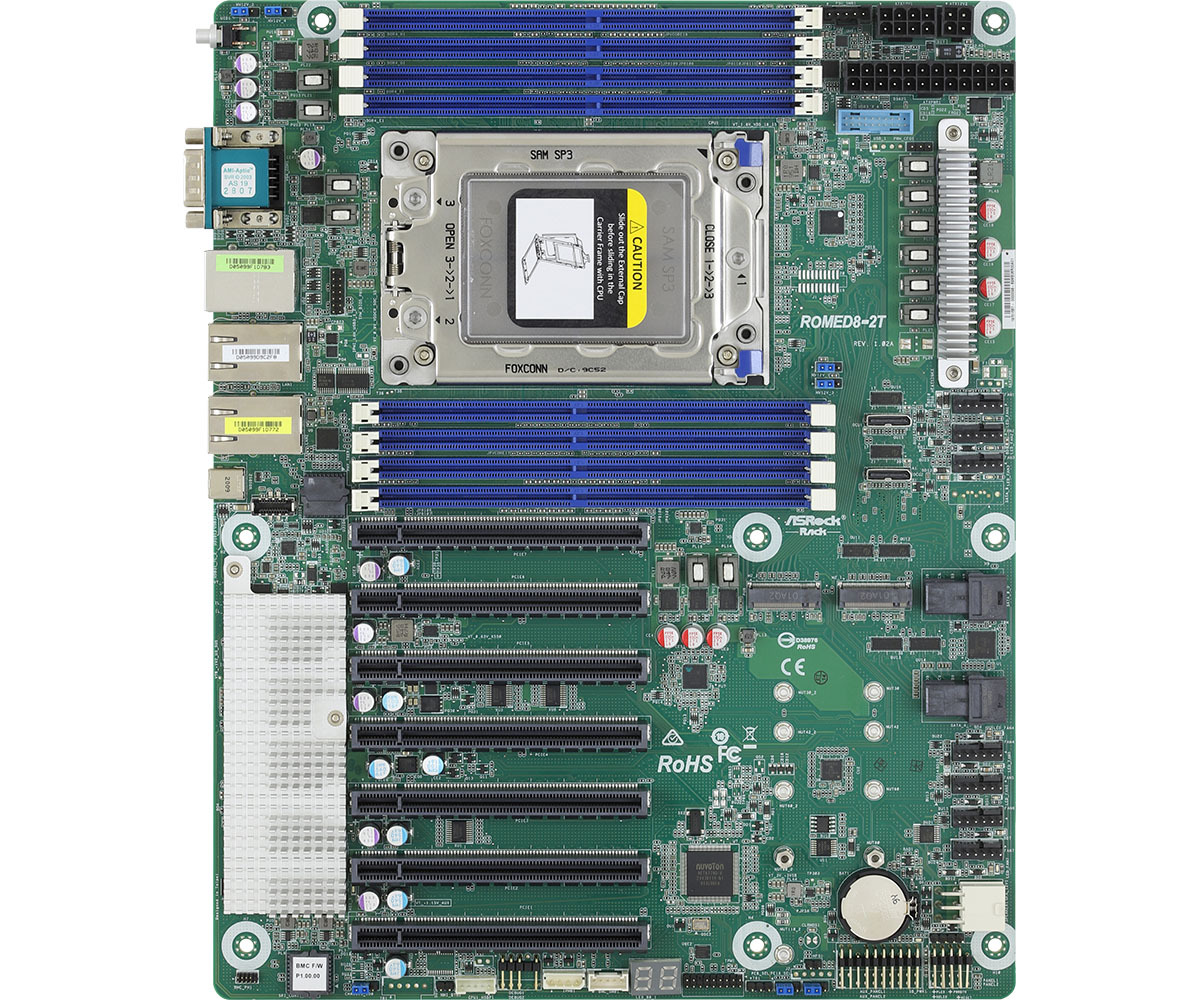

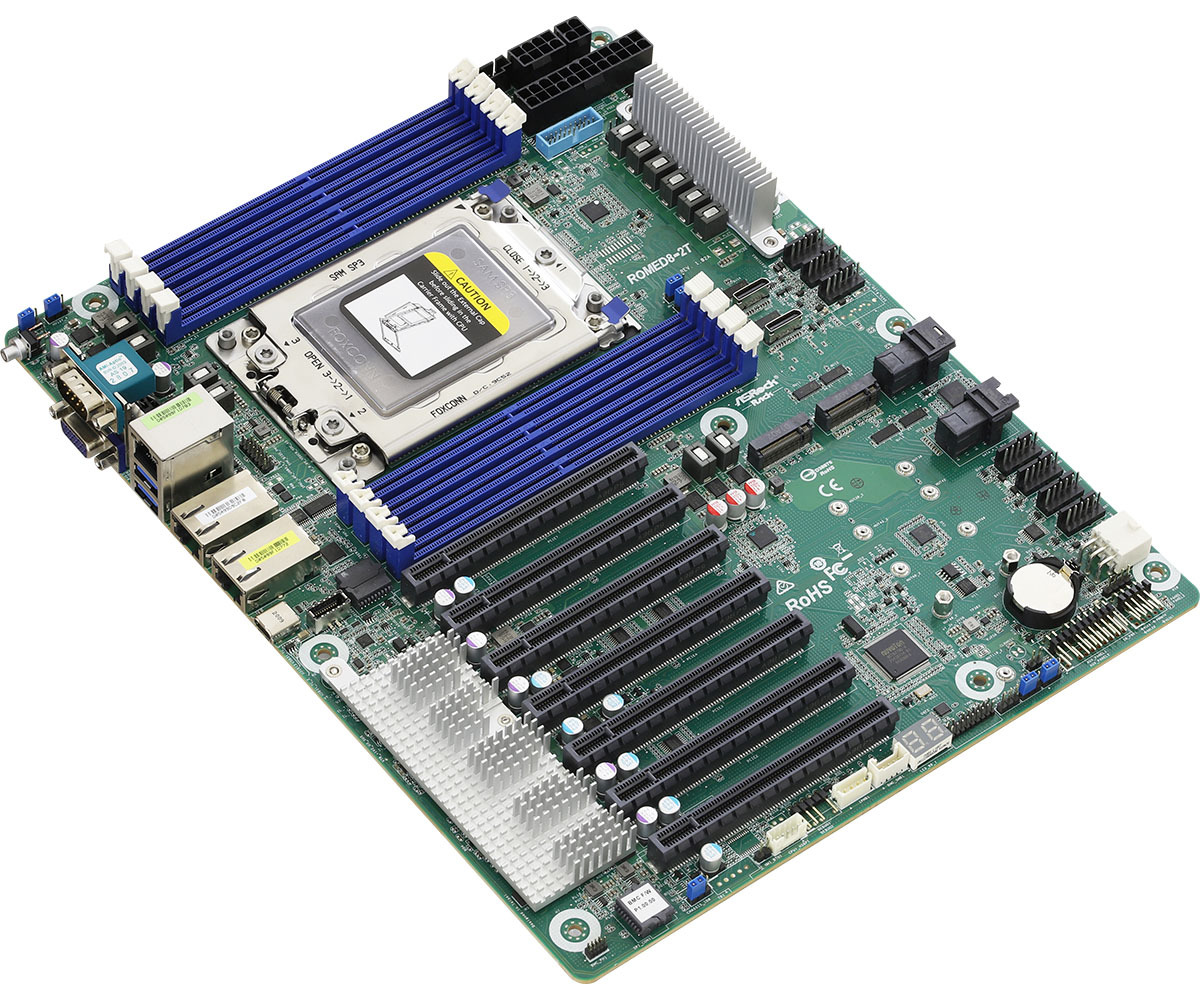

ROMED8-2T

型号ROMED8-2T

ATX (12" x 9.6")

Single Socket SP3 (LGA 4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 series processors

8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS

7 PCIe4.0 x16

2 OCuLink (PCIe4.0 x4)

立即查詢

规格

物理信息
型式 ATX
尺寸 12'' x 9.6'' (305 mm x 244 mm)
处理器系统
CPU

Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 Series Processors

*A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology
插槽 Single Socket SP3 (LGA4094)
芯片组 System on Chip
系统内存
容量 8 DIMM slots (1DPC)
类型 Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS
每个DIMM支持的 DIMM 尺寸

RDIMM: up to 64GB

LRDIMM: up to 128GB

RDIMM/LRDIMM-3DS: up to 256GB
Max. DIMM Frequency RDIMM/ LRDIMM: max. 3200MHz
电压 1.2V
扩展插槽
PCIe x 16

SLOT7: PCIe4.0 x16

SLOT6: PCIe4.0 x16

SLOT5: PCIe4.0 x16

SLOT4: PCIe4.0 x16

SLOT3: PCIe4.0 x16

SLOT2: PCIe4.0 x16 or PCIe4.0 x8 + 1 M.2+1 miniSASHD

or no PCIe SLOT +2 OCuLink+1 M.2+1 miniSAS HD (by jumper)

SLOT1: PCIe4.0 x16
存储
SATA 控制器

AMD EPYC 7003/7002 (10 SATA 6Gb/s):

2 Mini-SAS HD, 2 M.2
OCuLink for U.2

2 OCuLink* (PCIe4.0 x4)

*Shared with SLOT2 by jumper
M.2

1 M-key* (PCIe4.0 x4 or SATA 6Gb/s), supports 2280/2260/2242/2230 form factor

1 M-key* (PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2260/2242/2230 form factor

*Share with SLOT2 by jumper
以太网
Additional GbE Controller 1 Intel® X550-AT2: 2 RJ45 (10GbE)
管理功能
BMC 控制器 ASPEED AST2500
IPMI 独立 GLAN 1 x Realtek RTL8211E for dedicated management GLAN
显示
控制器 ASPEED AST2500
显存 DDR4 512MB

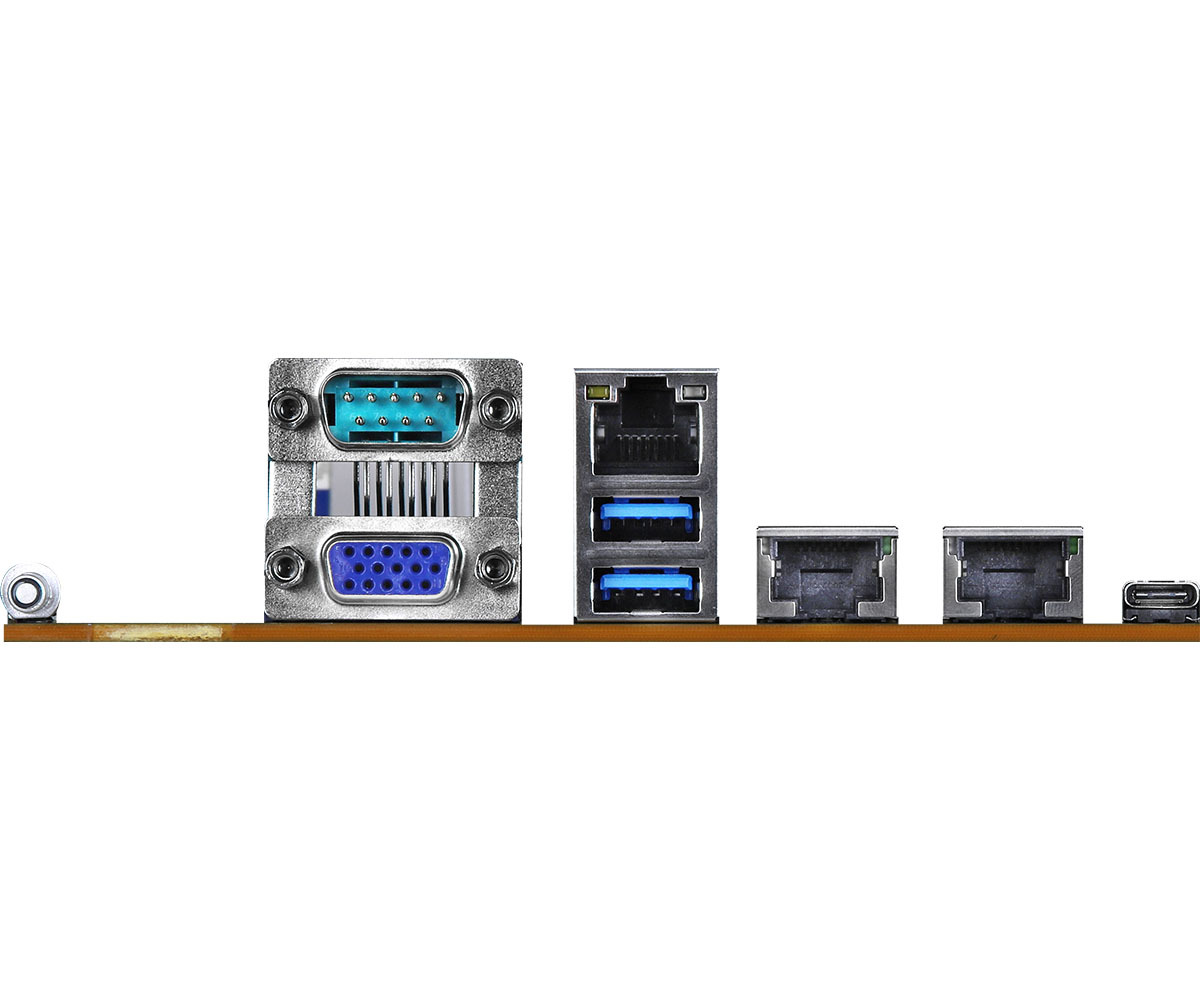

后侧面板 I/O 接口
VGA 接口 1 DB15
USB 3.0 接口 2 Type-A (USB3.2 Gen1)
USB 3.2 接口 1 Type-C (USB3.2 Gen2)
网络接口

2 RJ45 (10GbE)

1 dedicated IPMI
串口 1 DB9
UID Button/UID LED 1
内置接口
电源接口 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V)
辅助面板接头 1 (includes chassis intrusion, location button & LED, and front LAN LED)
TPM 接口 1 (17-pin, LPC), 1 (13-pin, SPI)
热量感应接口 1
IPMB 接口 1
风扇接口 7 (6-pin) [1CPU/4Front/2Rear]
USB 3.2 (Gen1) 连接头 1 (19-pin, 2 USB3.2 Gen1)
USB 3.2 (Gen2) 连接头 1 (Type-C, 1 USB3.2 Gen2)
NMI Header 1
System Panel 1 (rst, pwrbtn, hddled, pwrled)
扬声器 1 (4-pin)
BMC_SMB Header 1
Clear CMOS 1 (contact pads)
板载 LED
Fan Fail LED 7
系统 BIOS
BIOS 类型 32MB AMI UEFI Legal BIOS
BIOS 功能

Plug and Play (PnP)

ACPI 2.0 Compliance Wake Up Events

SMBIOS 2.8 Support

ASRock Rack Instant Flash
硬件监控
温度

CPU Temperature Sensing

MB/TR1/Card side Temperature Sensing
风扇

CPU/Rear/Front Fan Tachometer

CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)

CPU/Rear/Front Fan Multi-Speed Control
电压 Voltage Monitoring: Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB
支持操作系统
操作系统

Microsoft® Windows:

Server 2016 (64 bit)

Server 2019 (64 bit)


Linux:

RedHat Enterprise Linux Server 8.0 (64 bit) / 7.6 (64 bit)

CentOs 8.0 (64 bit) / 7.6 ( 64 bit)

SUSE SLES 15.1 (64 bit) / 12.4 (64 bit)

UBuntu 18.04.3 (64 bit) / 16.04.6 (64 bit)

CITRIX Hypervisor 8.1


Virtual:

VMWare® ESXi 6.5 u3 / 6.7 u3

vSphere 6.5 u3/ / 6.7 u3


* The SUSE Enterprise Linux Server 15.1 (64 bit) / 12.4 (64 bit) system only supports UEFI BOOT.

* Please refer to our website for the latest OS support list.
使用环境
温度 Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)





CPU 支持列表

插槽 加载 型号 核心 频率 缓存 电源 起始 BIOS
SP3 EPYC 7002 7742(100-000000053) Rome 3.20GHz   225W All
SP3 EPYC 7001 7601(PS7601BDVIHAF) Naples 2.20GHz n/a 180W P1.30
SP3 EPYC 7002 7662(100-000000137) Rome 2.00GHz   225W P1.10
SP3 EPYC 7002 7532(100-000000136) Rome 2.40GHz   200W All
SP3 EPYC 7002 7402P(100-000000048) Rome 2.80GHz   180W All
SP3 EPYC 7002 7302(100-000000043) Rome 3.00 GHz   155W All
SP3 EPYC 7002 7402(100-000000046) Rome 2.80GHz   180W All
SP3 EPYC 7002 7642(100-000000074) Rome 2.30GHz   225W All
SP3 EPYC 7002 7252(100-000000080) Rome 3.10GHz   120W All
SP3 EPYC 7002 7282(100-000000078) Rome 2.80GHz   120W All
SP3 EPYC 7002 7552(100-000000076) Rome 3.20GHz   200W All
SP3 EPYC 7002 7F52(100-000000140) Rome 3.50 GHz   240W All
SP3 EPYC 7002 7702(100-000000037) Rome 3.20GHz   200W All
SP3 EPYC 7002 7F72(100-000000141) Rome 3.20 GHz   240W All
SP3 EPYC 7002 7542(100-000000075) Rome 3.20GHz   225W All
SP3 EPYC 7002 7352(100-000000077) Rome 3.20GHz   155W All
SP3 EPYC 7002 7502P(100-000000045) Rome 3.20GHz   180W All
SP3 EPYC 7002 7702P(100-000000047) Rome 3.20GHz   200W All
SP3 EPYC 7002 7502(100-000000054) Rome 2.50GHz   180W All
SP3 EPYC 7002 7452(100-000000057) Rome 3.20GHz   155W All
SP3 EPYC 7001 7351P(PS735PBEVGPAF) Naples 2.40 GH n/a 155W P1.30
SP3 EPYC 7001 7251(PS7251BFV8SAF) Naples 2.10 GHz n/a 120W P1.30
SP3 EPYC 7001 7401P(PS740PBEVHCAF) Naples 2.00 GHz n/a 155W P1.30
SP3 EPYC 7001 7551P(PS755PBDVIHAF) Naples 2.00 GHz n/a 180W P1.30
SP3 EPYC 7001 7551(PS7551BDVIHAF) Naples 2.00 GHz n/a 180W P1.30
SP3 EPYC 7002 7302P(100-000000049) Rome 3.20GHz   155W All
SP3 EPYC 7003 7513(100-000000334) MILAN 2.6GHz   200W P3.20
SP3 EPYC 7003 7473X(100-000000507) MILAN-X 2.8GHz   240W P3.30
SP3 EPYC 7003 7373X(100-000000508) MILAN-X 3.05GHz   240W P3.30
SP3 EPYC 7003 7343(100-000000338) MILAN 3.2GHz   190W P3.20
SP3 EPYC 7003 7443(100-000000340) MILAN 2.85GHz   200W P3.20
SP3 EPYC 7003 73F3(100-000000321) MILAN 3.5GHz   240W P3.20
SP3 EPYC 7003 72F3(100-000000327) MILAN 3.7GHz   180W P3.20
SP3 EPYC 7003 7663(100-000000318) MILAN 2.0GHz   240W P3.20
SP3 EPYC 7003 7443P(100-000000342) MILAN 2.85GHz   200W P3.20
SP3 EPYC 7003 7543P(100-000000341) MILAN 2.8GHz   225W P3.20
SP3 EPYC 7003 75F3(100-000000313) MILAN 2.95GHz   280W P3.20
SP3 EPYC 7002 7F32(100-000000139) Rome 3.70 GHz   180W All
SP3 EPYC 7003 7643(100-000000326) MILAN 2.3GHz   225W P3.20
SP3 EPYC 7003 7773X(100-000000504) MILAN-X 2.2GHz   280W P3.30
SP3 EPYC 7003 74F3(100-000000317) MILAN 3.2GHz   240W P3.20
SP3 EPYC 7003 7313(100-000000329) MILAN 3.0GHz   155W P3.20
SP3 EPYC 7003 7713P(100-000000337) MILAN 2.0GHz   225W P3.20
SP3 EPYC 7003 7413(100-000000323) MILAN 2.65GHz   180W P3.20
SP3 EPYC 7003 7763(100-000000312) MILAN 2.45GHz   280W P3.20
SP3 EPYC 7003 7543(100-000000345) MILAN 2.8GHz   225W P3.20
SP3 EPYC 7003 7713(100-000000344) MILAN 2.0GHz   225W P3.20
SP3 EPYC 7002 7262(100-000000041) Rome 3.2GHz   155W All
SP3 EPYC 7002 7232P(100-000000081) Rome 3.1GHz   120W All
SP3 EPYC 7002 7272(100-000000079) Rome 2.9GHz   120W All
SP3 EPYC 7002 7H12(100-000000055) Rome 2.60 GHz   280W All
SP3 EPYC 7003 7313P(100-000000339) MILAN 3.0GHz   155W P3.20





内存支持列表

类型 速度 内存条 容量 供应商 模块 型号 单元
DDR4 3200 RDIMM 8GB Micron MTA9ASF1G72PZ-3G2R1VI ITR75D8BPJ Micron
DDR4 3200 RDIMM 8GB Samsung M393A1K43DB2-CWEGQ K4A8G0B5WD BCWE Sec
DDR4 3200 RDIMM 8GB Samsung M393A1K43DB2-CWECQ K4A8G0B5WD BCWE Sec
DDR4 3200 RDIMM 64GB Hynix HMAA8GR7AJR4N-XN H5ANAG4NAJR XNC Hynix
DDR4 3200 RDIMM 64GB Micron MTA36ASF8G72PZ-3G2E1VI OBE45D9XPC Micron
DDR4 3200 RDIMM 64GB Micron MTA36ASF8G72PZ-3G2E1TI OAE45D9XPC Micron
DDR4 3200 RDIMM 32GB Crucial CT32G4RFD432A.36FE2 9CE75D9WFK Micron
DDR4 3200 RDIMM 32GB Crucial CT32G4RFD432A.36FE2 8SE75D9WFK Micron
DDR4 3200 RDIMM 32GB Innodisk M4R0-BGS2BCEM-J02 K4AAG085WA BCWE Sec
DDR4 3200 RDIMM 32GB Kingston KSM32RD4/32MEI 9TE75D9WFK Micron
DDR4 3200 RDIMM 32GB Micron MTA18ASF4G72PZ-3G2F1UI IRF75D8CJT Micron
DDR4 3200 RDIMM 32GB Micron MTA18ASF4G72PDZ-3G2F1VI ISF75D8CJV Micron
DDR4 3200 RDIMM 32GB Micron MTA18ASF4G72PDZ-3G2E1UI OBE45D9ZFV Micron
DDR4 3200 RDIMM 32GB Micron MTA18ASF4G72PZ-3G2F1TI ISF75D8CJT Micron
DDR4 3200 RDIMM 16GB Crucial CT16G4RFD832A.18FE1 8TE75D9WFL Micron
DDR4 3200 RDIMM 16GB Crucial CT16G4RFD832A-3G2E1.001 9IE75D9WFL Micron
DDR4 3200 RDIMM 16GB Innodisk M4R0-AGS1BCEM-J02 946 K4A8G085WC BCWE Sec
DDR4 3200 RDIMM 16GB Kingston KSM32RD8/16MEI 9PE77D9WFL Micron
DDR4 3200 RDIMM 16GB Micron MTA18ASF2G72PDZ-3G2J3UI IEJ47D9WSM Micron
DDR4 3200 RDIMM 16GB Samsung M393A2K40DB3-CWECQ KWA8G045WD BCWE Sec
DDR4 3200 RDIMM 16GB Samsung M393A2K40DB3-CWEGQ KWA8G045WD BCWE Sec
DDR4 2933 RDIMM 64GB Micron MTA36ASF8G72PZ-2G9B2TI 9YB47D9XPD Micron
DDR4 2933 RDIMM 32GB Nanya NT32GA72D4NAX3P-IX NT5AD2048M4A3-JR Nanya
DDR4 2933 RDIMM 16GB Crucial CT16G4RFD8293.18FE1 8BE75D9WFL Micron
DDR4 2933 RDIMM 16GB Crucial CT16G4RFS4293.18FE1 8PE77D9WFK Micron
DDR4 2933 RDIMM 16GB Kingston KSM29RD8/16MEI 8SE77D9WFL Micron
DDR4 2933 LRDIMM 128GB Crucial CT128G4ZFJ429S.36QE1 9LE77D9WFQ Micron
DDR4 2666 LRDIMM 64GB Crucial CT64G4LFQ4266.36DD2 9FD77D9VXG Micron
DDR4 2666 RDIMM 64GB Crucial CT64G4YFQ426S.36DG1 8RG4ID9VNK Micron
DDR4 2666 RDIMM 32GB Crucial CT32G4RFD4266-2G6H1.001 7LH75D9VHM Micron
DDR4 2666 RDIMM 32GB Hynix HMA84GR7AFR4N-VK H5AN8G4NAFR Hynix
DDR4 2666 RDIMM 32GB Samsung M393A4K40BB2-CTD6Q K4A8G04 5WB BCTD Sec
DDR4 2666 RDIMM 16GB Samsung M393A2G40EB2-CTD6Q K4A4G04 5WE BCTD Sec
DDR4 2400 LRDIMM 32GB Crucial CT32G4LFD424A.36FB1 6BB47D9TNT Micron
DDR4 2400 RDIMM 16GB Kingston KVR24R17D4/16 H5AN4G4NAFR Hynix
DDR4 2400 RDIMM 16GB Samsung M393A2K40BB1-CRC0Q M K4A8G045WB BCRC Sec





TPM QVL

Type Interface Pin IC Model
TPM SPI SPI 13 pin SLB9670VQ2.0 TPM-SPI/INFINEON*
TPM SPI SPI 13 pin NPCT750AABYX QFN-32 TPM SPI/NUVOTON*
TPM 2.0 LPC 17 pin Nuvoton NPCT650 TPM2-S/NUVOTON/RS1
TPM 2.0 LPC 17 pin INFINEON SLB9665 TPM2-S/INFINEON
